Name: Female DB9 Connectors to CAN LIN Interface Adapter For PCAN PLIN CAN Bus Monitor
Brand: Shenzhen Jetacon Technology Limited
SKU: DB9-CAN LIN adapter
Price: 3.99 USD
Availability: InStock

Home Products Terminal Block Breakout Board

Female DB9 Connectors to CAN LIN Interface Adapter For PCAN PLIN CAN Bus Monitor

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	DB9-CAN LIN adapter

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	US $3.99 / Piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Type:	Adapter	Application:	CAN LIN Data Analysis
Gender:	Female

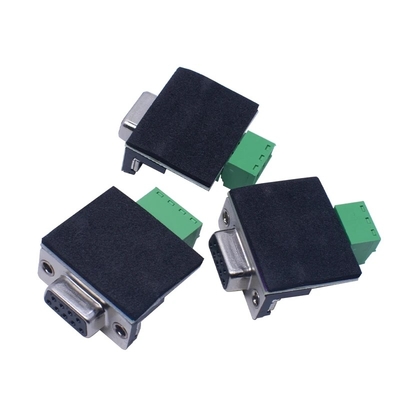

Female DB9 to CAN LIN 3-pin or 4-pin terminal adapter

Screw terminal blocks: 3.81mm Pitch, Wiring Gauge: 22-18AWG, 5 Amps current

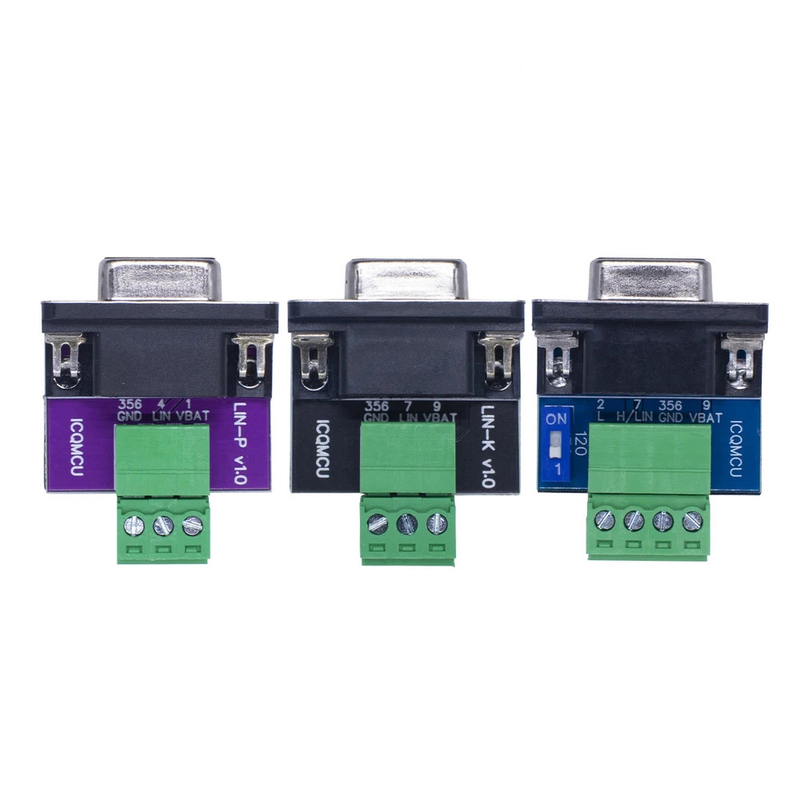

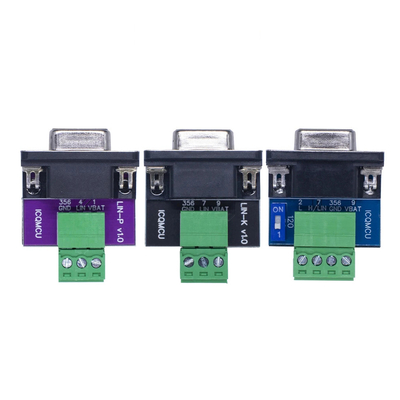

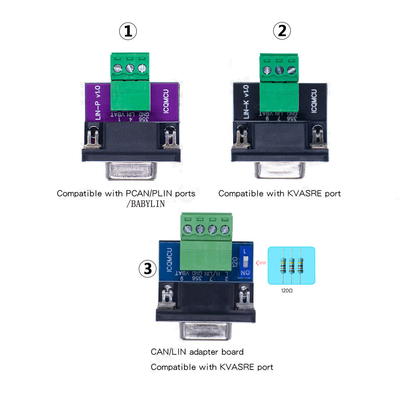

DB9 9 Pin Wiring Diagram:

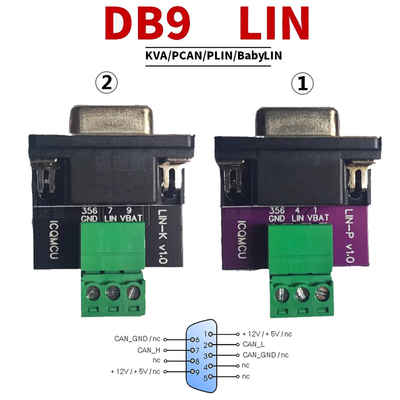

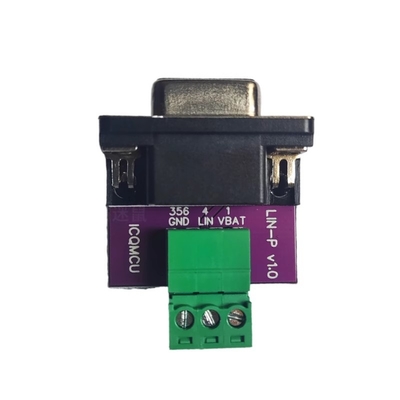

Type 1: LIN-P: Purple circuit board
1-VBAT, 4-LIN,3-GND
Complied to PCAN / PLIN / BabyLIN

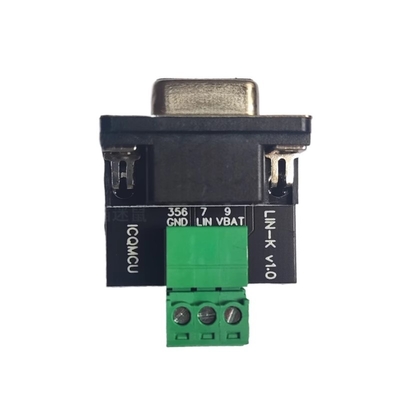

Type 2: LIN-K: Black circuit board
9-VBAT, 7-LIN,3-GND
Complied to KVASRE Interface Port

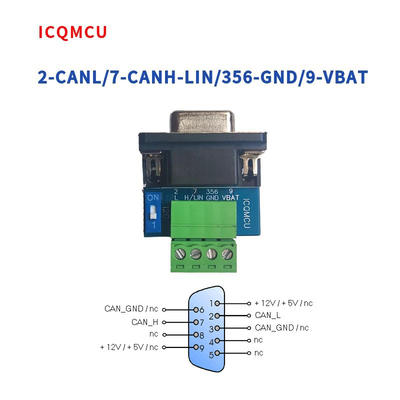

Type 3: CAN-LIN: Blue circuit board
9-VBAT, 7-LIN/CANH,2-CANL, 3/5/6-GND
Complied to KVASRE Interface Port

120 Ohm resistance designed with switch on or switch off

Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.

CAN bus (Controller Area Network)
It is a standard bus interface used in most vehicles where the board computer communicates with separate control ECUs taking care of the engine, gearbox, climate, security alarm, and safety bags.
LIN bus (Local Interconnect Network)
It is developed as a complementally bus standard to the Controller Area Network (CAN bus) to address the need for a cost-efficient network for lower performance devices within the vehicle. While the CAN network was already in place within vehicles, its high bandwidth and advanced error detection capabilities were overkill (and thus, cost-prohibitive) for lower performance applications such as seat and window controllers.
